Supplier Homepage 1500RPM 2.2 KW Electric Permanent Magnet Synchronous Motor

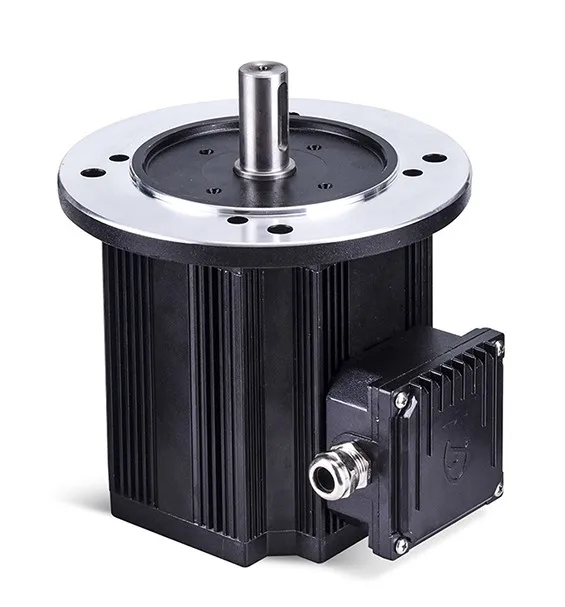

1500RPM 2.2 KW Electric Permanent Magnet Synchronous Motor

Min. Order / Reference FOB Price
100 Pieces US $155.00/ Pieces
Payment Terms: T/T,other
Inventory 10000
Contact Now
Leave message inquiry Basket Favorites

Basic Info

Samples true

Product Description

Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DONGLING MOTOR
Model Number:
DL90
Type:
Synchronous Motor
Frequency:
50Hz 60Hz
Protect Feature:
Drip-proof
Phase:
Three-phase, Three-phase
Certification:
CCC, CE
AC Voltage:
208-230 / 240 V
Efficiency:
IE 4, 89.5%
Product Name:
1500RPM 2.2 KW Electric Permanent Magnet Synchronous Motor
Output Power:
2200W
Size:
L
Weight:
12.7
Working Time:
s3
Cooling mode:
IC410
Noise:
40~60dB
Torque:
14N.m
Packaging & Delivery
PortningboLead Time :
Quantity(Pieces) 1 - 1 2 - 500 >500
Est. Time(days) 15 30 To be negotiated
Product Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

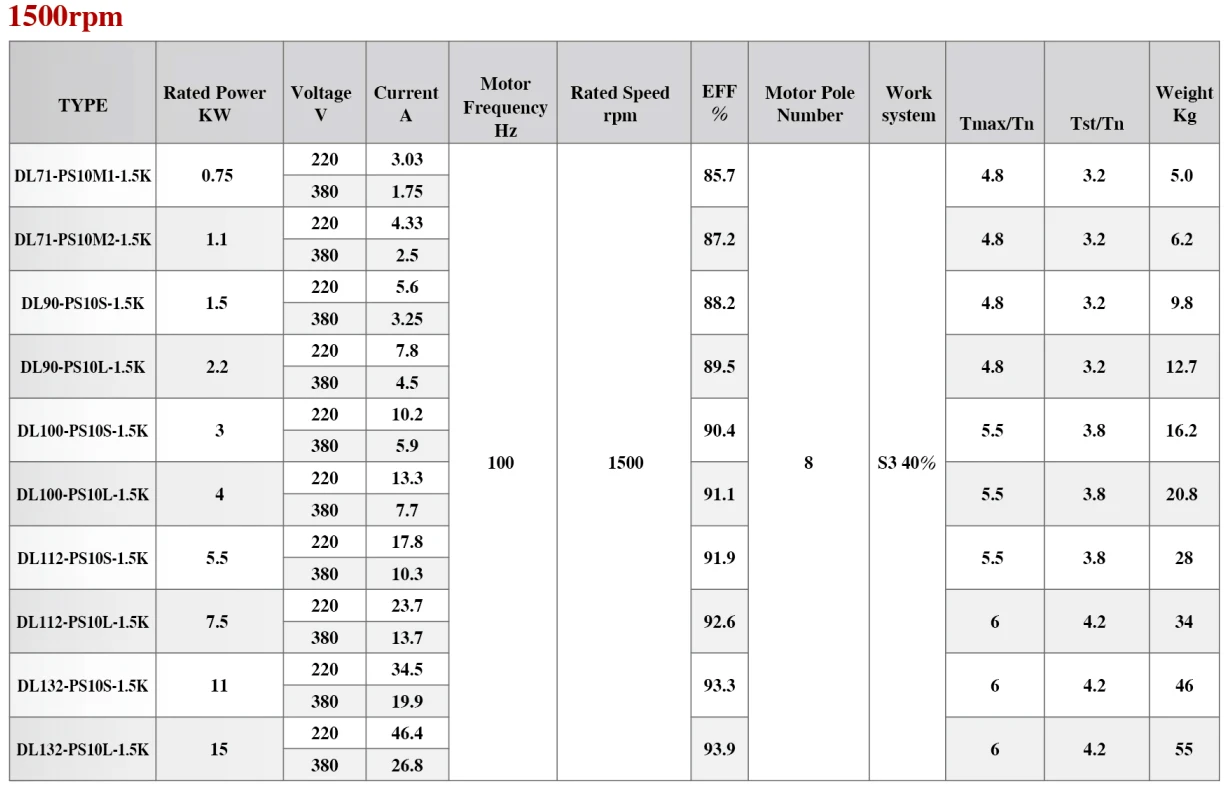

Place of Oringin:
Taizhou,  China
Model Number:
DL90-PS10L-1.5K
Phase:
Three-phase
Rated Power:
2.2kw
Voltage:
220/380v
Rated SPeed:
1500rpm
Efficiency:
89.5%
Motor name
Three-Phase PM Synchronous Motor
Motor Model
Three-Phase No Sensors PM Synchronous Motor
Adaptet Driver

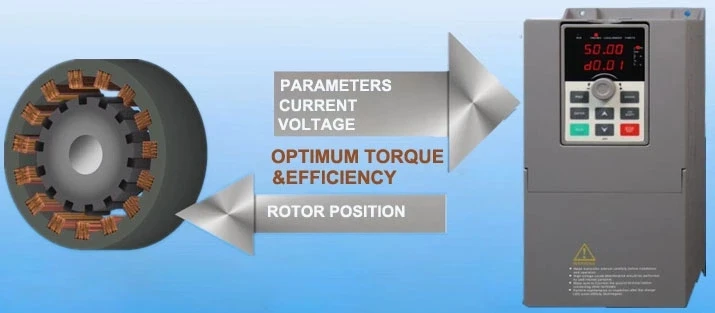

PM Synchronous Driver (Vector Frequency Inverter)
Insulation class
F
Protection grade
IP54 IP56
Cooling mode
IC411
Direction for use

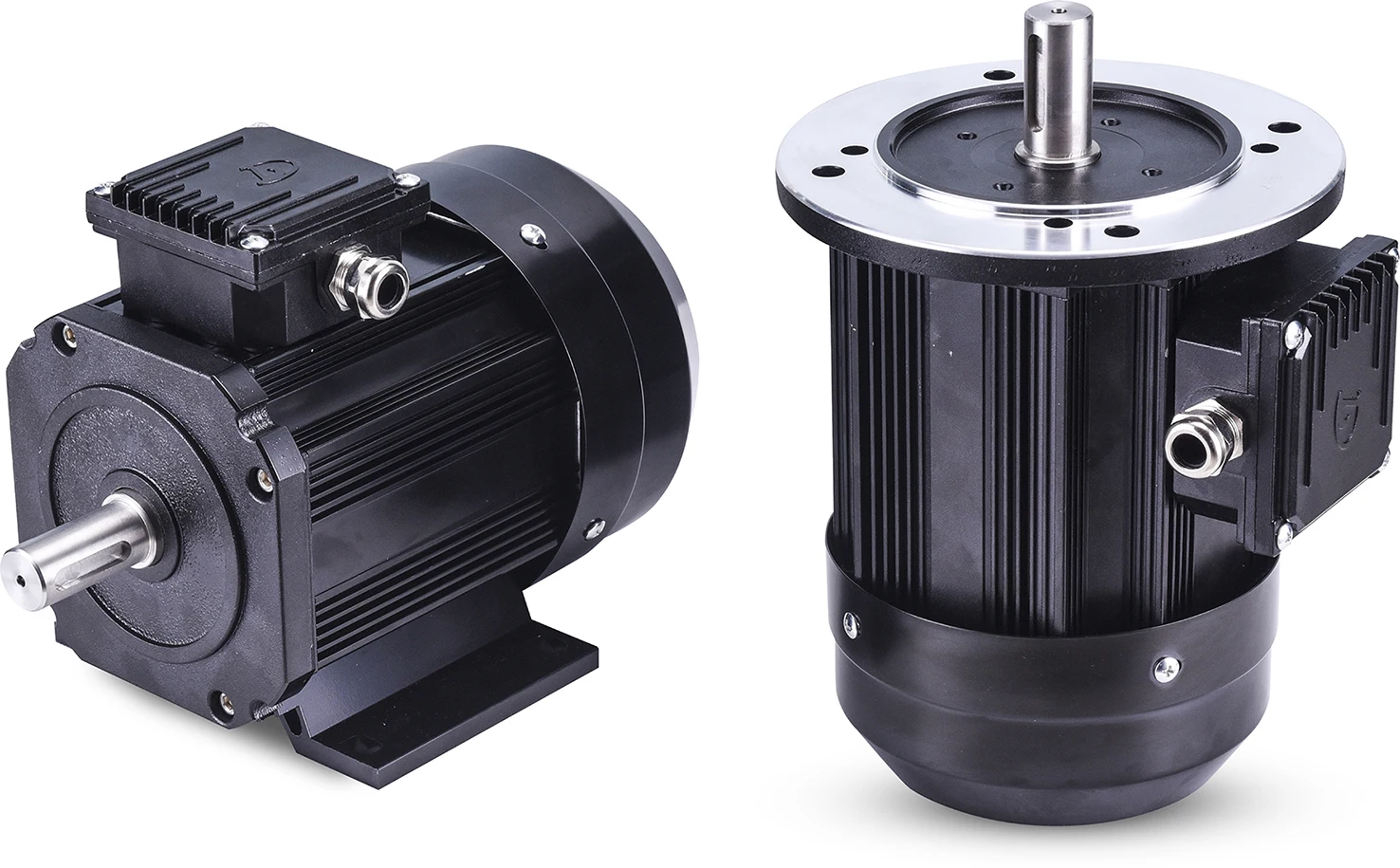

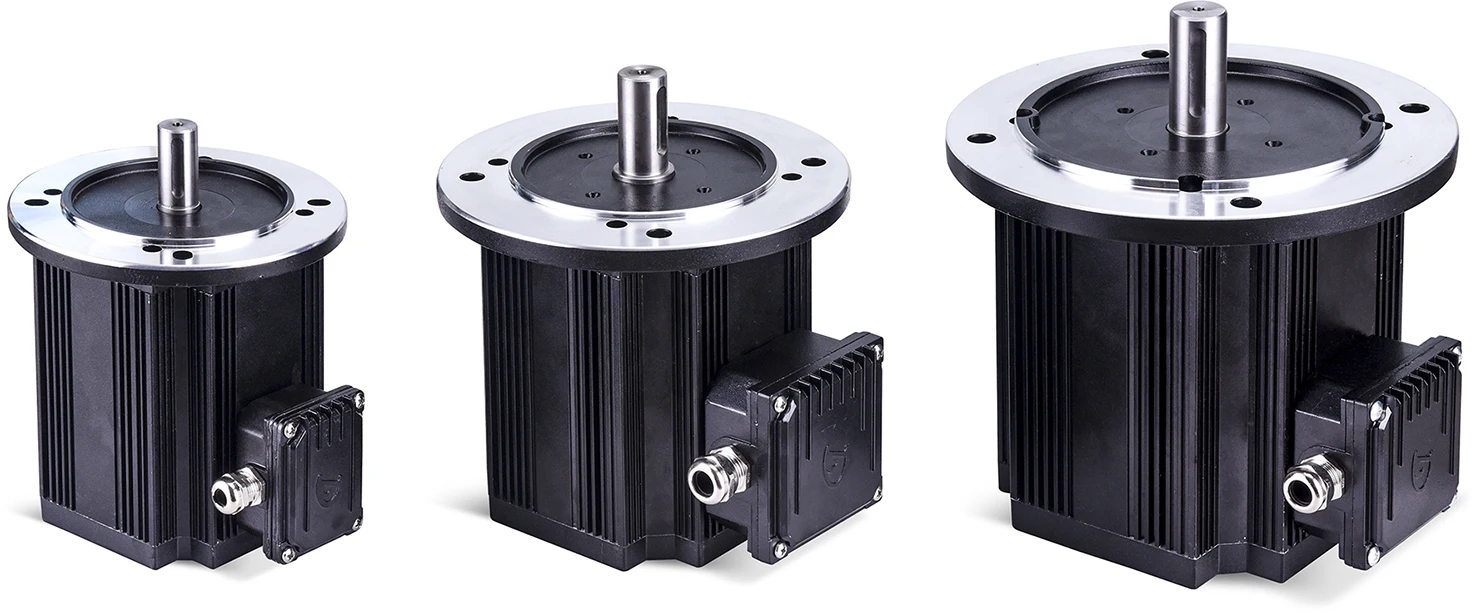

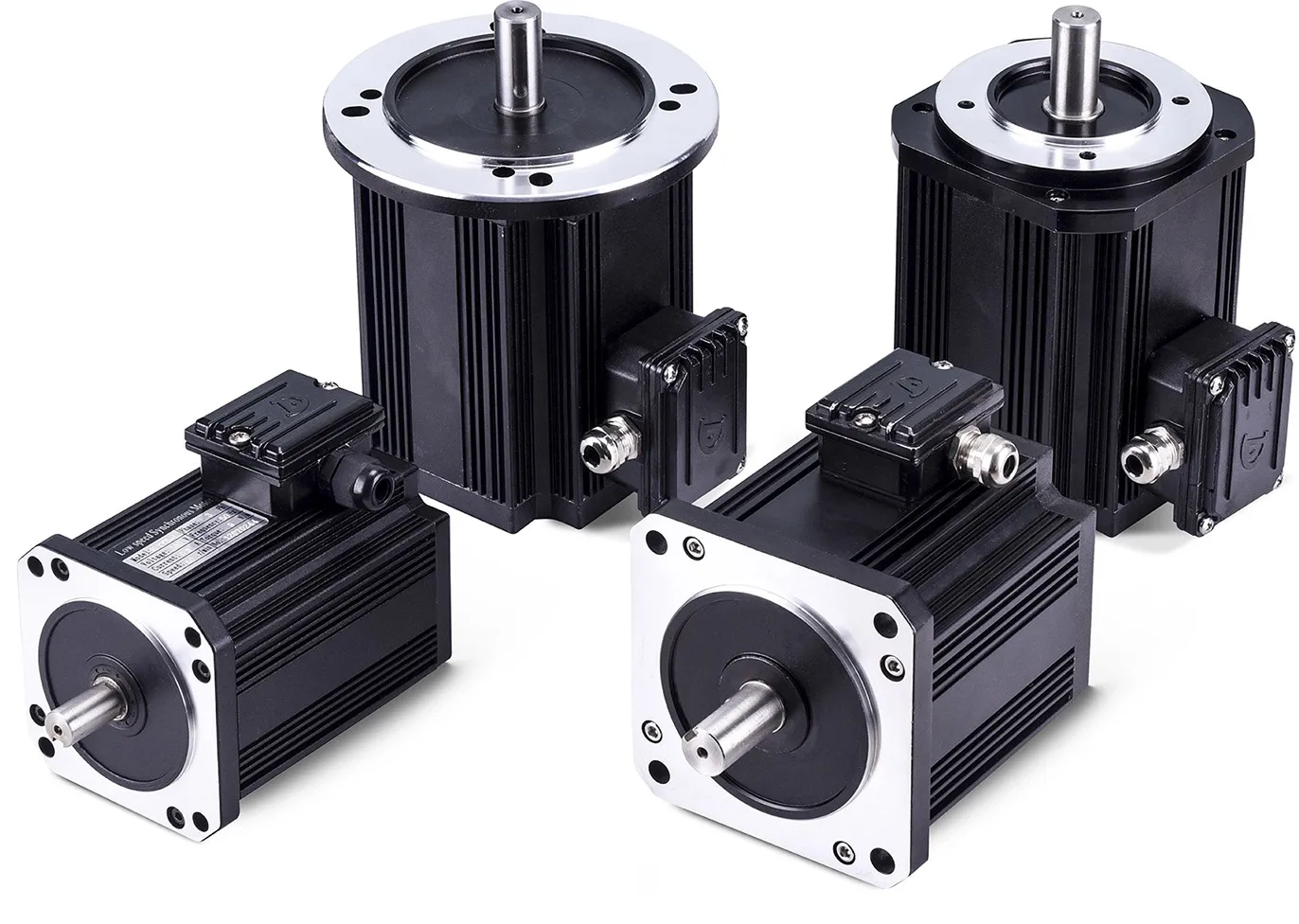

DLseries Three-phase PM AC efficiency motor is a kind of highly efficiency motor.The pole can be made from four to twenty.The range of speed is from 375 to 3000r/min.Protection grade is IP54、IP56，The cooling way is IC410、IC411，and insulation class is F.According to international standard IE60034-08 also IE4 ultra high efficiency standards.
Precautions for safe use
1. Operating environment: temperature -20 ℃ ~ ﹢ 50 ℃, relative humidity <85% (at 25 ℃), vibration 10 ~ 50Hz, double amplitude:1.5mm, gas death ≤75kKpa, altitude ≤4000m, no corrosion in air。 Sexual gas.
2. Storage: The motor should be stored in a clean and well-ventilated warehouse at a temperature of -10 ~ -35 ℃ and humidity ≤ 75% when not in use. The surrounding air does not contain corrosive gases.

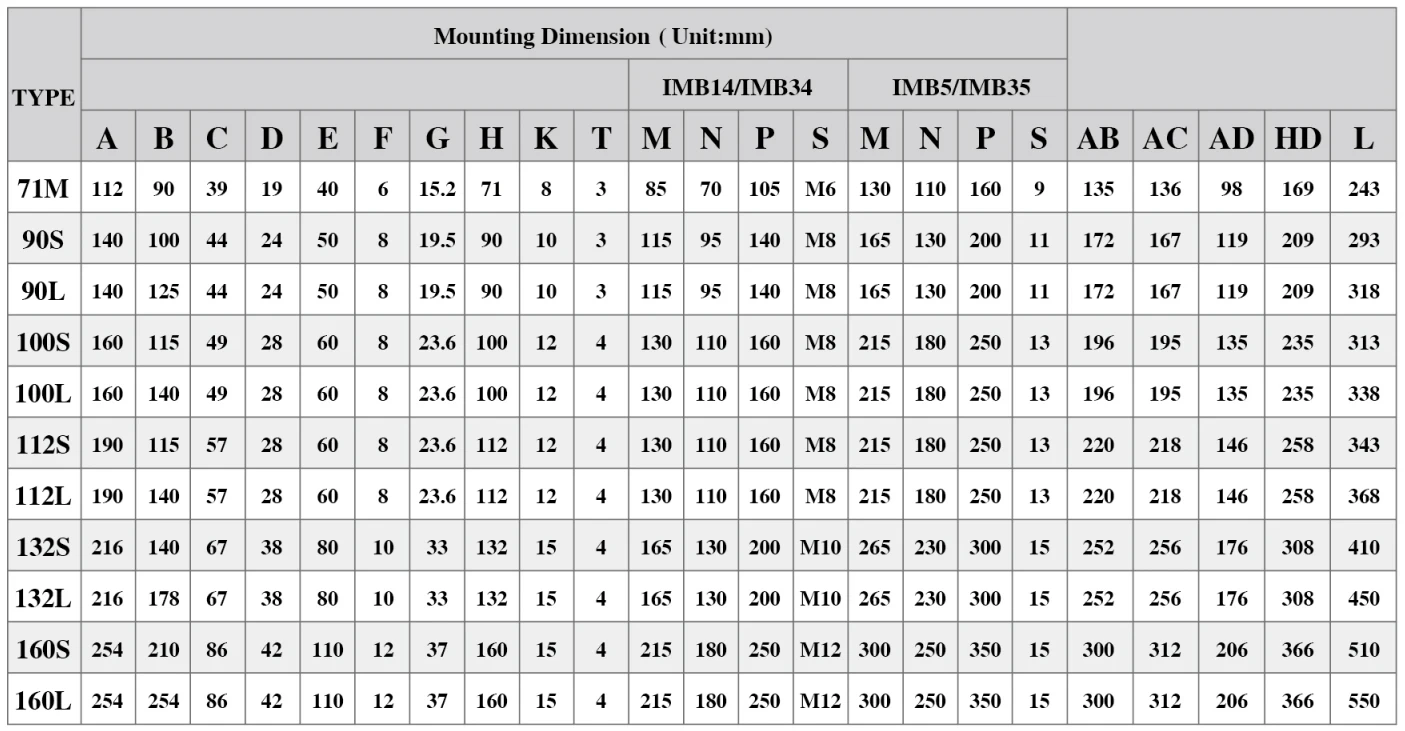

3. Installation: The base should be fastened to the mounting plane flange or bracket. Do not use a rigid connection for the output shaft. The matching accuracy must meet the requirements and be flexible in operation. Do not use gravity to hit or squeeze when connecting to avoid noise, vibration or seizure caused by internal deformation and movement.

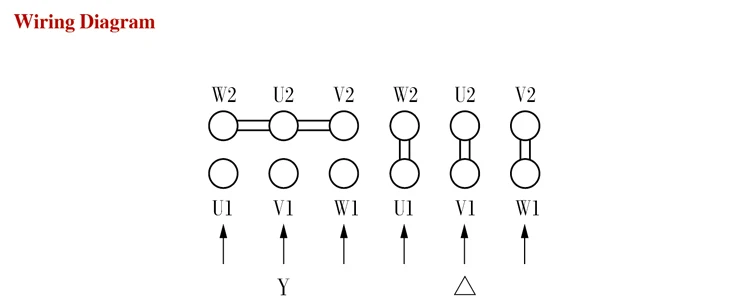

4. Wiring:Make sure the input voltage level is correct. Please use it according to the instructions.
