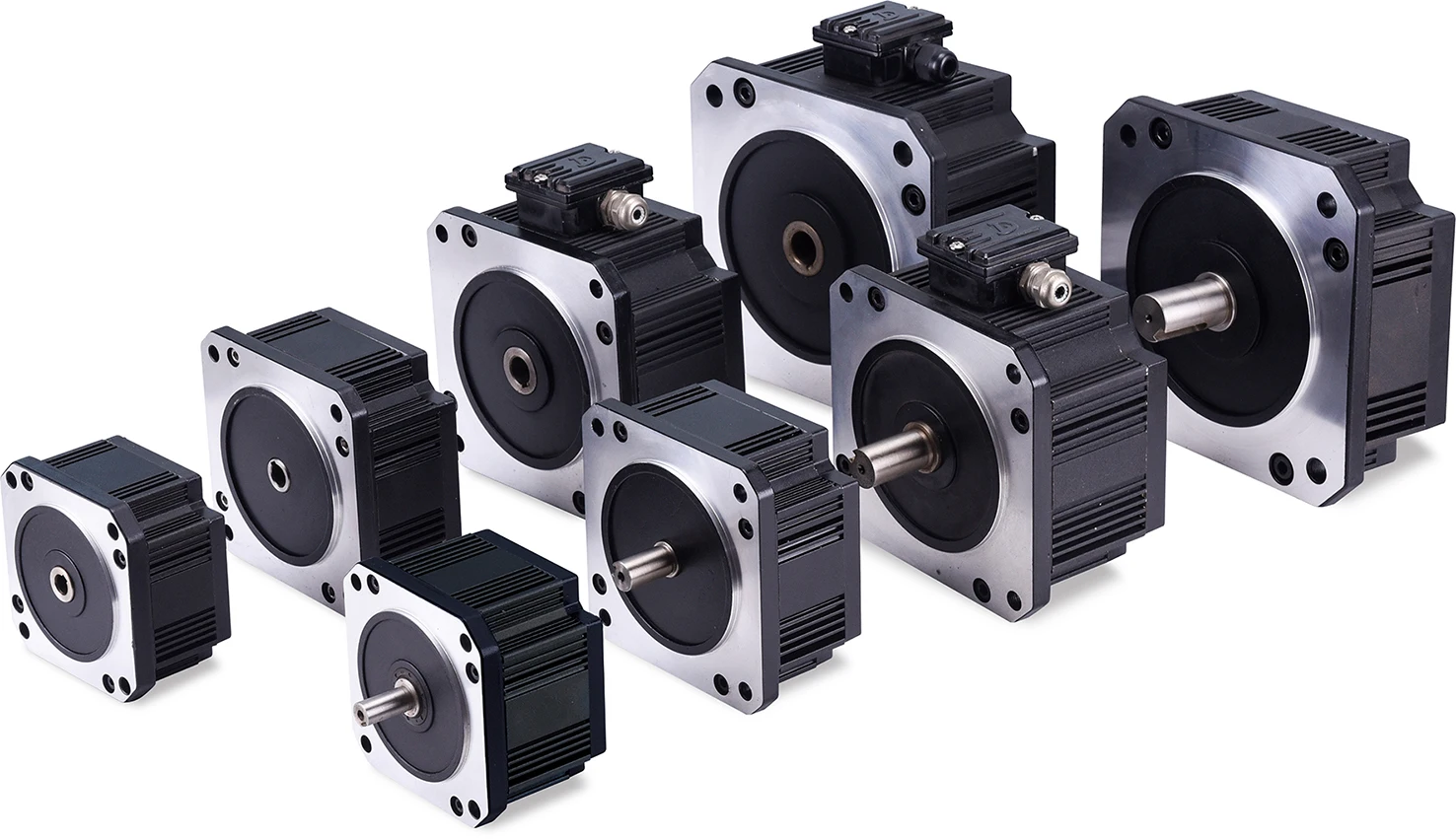

PM SYNCHRONOUS MOTOR

Inventory

300

Contact Now

Leave message Favorites

Basic Info

Samples

true

Product Description

Overview

Quick Details

Place of Origin:

Zhejiang, China

Brand Name:

DONGLING MOTOR

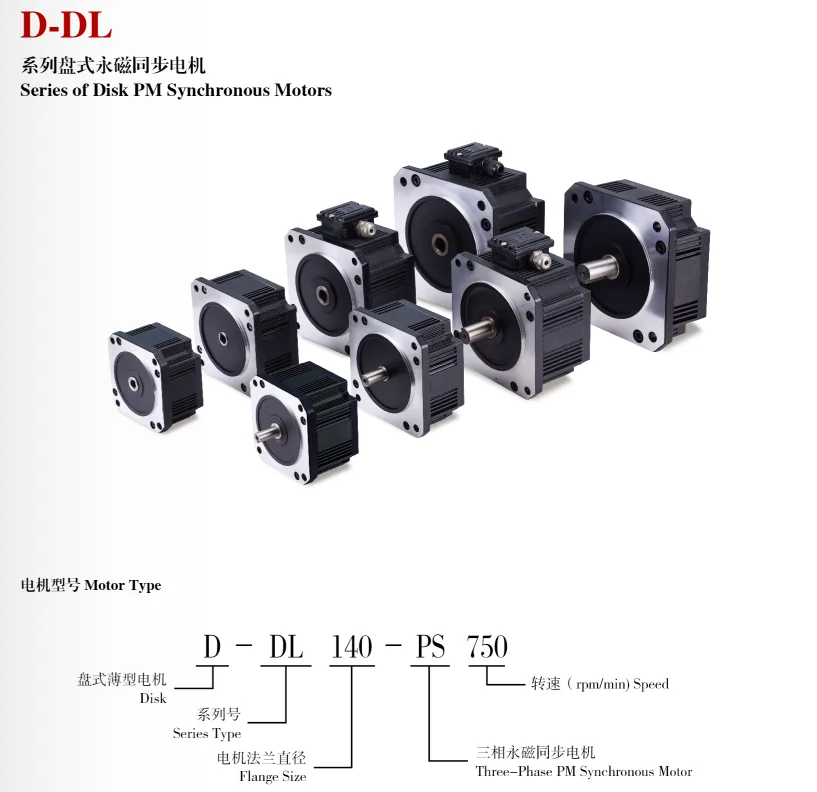

Model Number:

D-DL

Type:

Synchronous Motor

Frequency:

50.60

Protect Feature:

Drip-proof

Phase:

Three-phase

Certification:

CCC, CE

AC Voltage:

460 / 480 V

Efficiency:

IE 4

Supply Ability

Supply Ability:300 Case/Cases per Day

Packaging & Delivery

PortNINGBOPicture Example:

Lead Time :

Quantity(Cases)	1 - 1	2 - 500	>500
Est. Time(days)	15	20	To be negotiated

Product Description

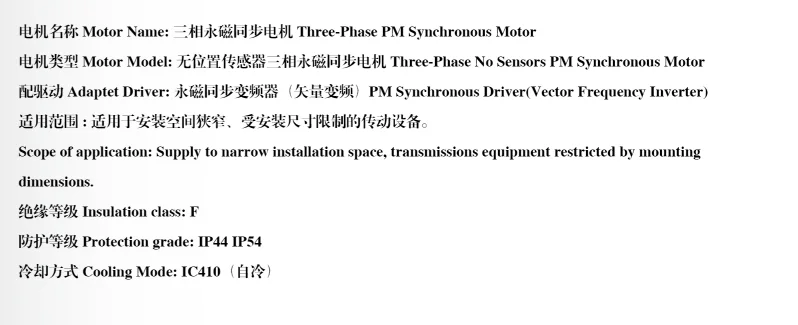

Motor name	Three-Phase PM Synchronous Motor
Motor Model	Three-Phase No Sensors PM Synchronous Motor
Adaptet Driver	PM Synchronous Driver (Vector Frequency Inverter)
Insulation class	F
Protection grade	IP54 IP56
Cooling mode	IC410

Direction for use

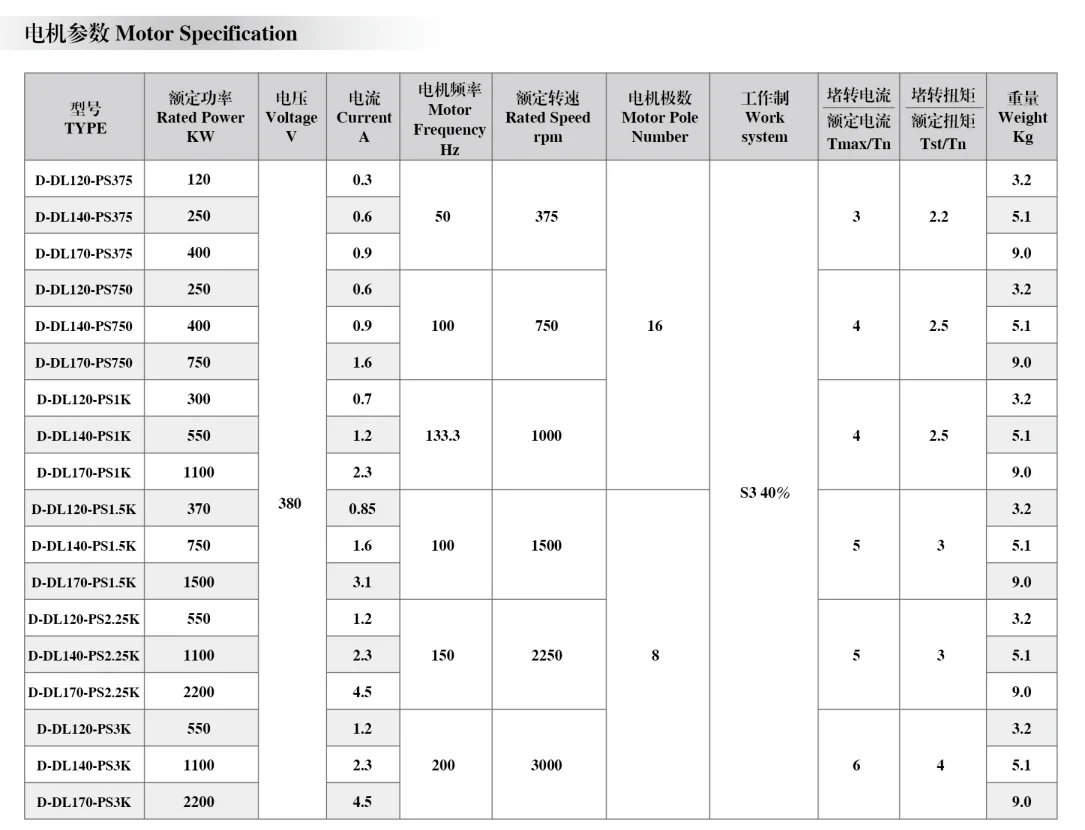

DLseries Three-phase PM AC efficiency motor is a kind of highly efficiency motor.The pole can be made from four to twenty.The range of speed is from 375 to 3000r/min.Protection grade is IP54、IP56，The cooling way is IC410、IC411，and insulation class is F.According to international standard IE60034-08 also IE4 ultra high efficiency standards.

Precautions for safe use

1. Operating environment: temperature -20 ℃ ~ ﹢ 50 ℃, relative humidity <85% (at 25 ℃), vibration 10 ~ 50Hz, double amplitude:1.5mm, gas death ≤75kKpa, altitude ≤4000m, no corrosion in air。 Sexual gas.

2. Storage: The motor should be stored in a clean and well-ventilated warehouse at a temperature of -10 ~ -35 ℃ and humidity ≤ 75% when not in use. The surrounding air does not contain corrosive gases.

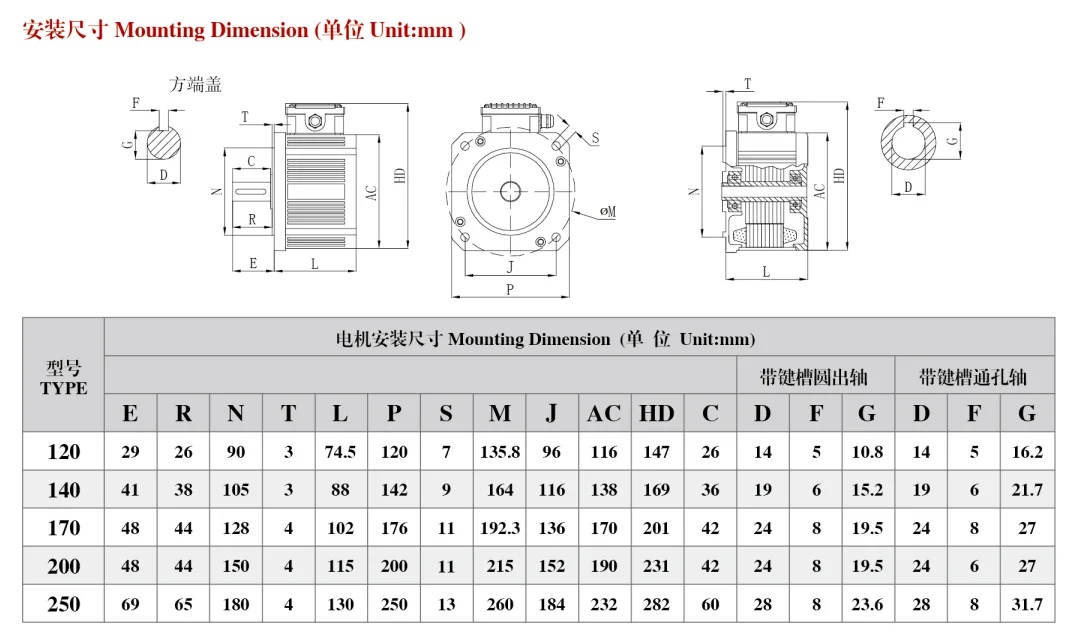

3. Installation: The base should be fastened to the mounting plane flange or bracket. Do not use a rigid connection for the output shaft. The matching accuracy must meet the requirements and be flexible in operation. Do not use gravity to hit or squeeze when connecting to avoid noise, vibration or seizure caused by internal deformation and movement.

4. Wiring:Make sure the input voltage level is correct. Please use it according to the instructions.
