Stall Torque 36n 12v24v 50w Dc Wiper Motor Specifications for Truck China Torque Rod

Inventory 100000
Leave message Favorites

Basic Info

Product Description

Quick Details

  • Type:

    wiper motor

  • Car Make:

    Zoomlion Autocrane ZY25

  • OE NO.:

    No

  • Place of Origin:

    Shanghai China (Mainland)

  • Brand Name:

    XY

  • Model Number:

    ZD2531D

  • wiper motor:

    12V/24V DC

  • Power:

    50W

  • Lifetime:

    1

  • 500:

    000 cycles

  • Warranty:

    360 days

  • Manufacturer:

    Shanghai

  • Experience:

    30 years

  • Delivery:

    Within 20 days after order

  • Size:

    1.6kg

  • Place of Origin:

    Shanghai China (Mainland)

  • Packing:

    Genrally, each one in a carton, 5pcs in a carton. or per your requirements.

  • Delivery Port:

    Shanghai

  • OE Experience:

    No

Product Name:Stall Torque 36n 12v24v 50w Dc Wiper Motor Specifications for Truck China Torque Rod

Stall Torque 36n 12v24v 50w Dc Wiper Motor Specifications for Truck China Torque Rod

Application

Zoomlion Autocrane Zy25

Product Description:

 Description

12V24V 50W Wiper Motor Specifications For Truck



Features:

1.Swing output.
2.Reinforced design.
3.Convenient installation,small space.
4.Matching EMC.RFI.INT.



Technical parameters:



Nominal voltage 12V 24V
Nominal power 50W
No load current 2.0/2.5A 1.5/2.5A
No load speed 45/65 ±5rpm
Load current 6.5/7.5A  3.5/5A
Load speed 40/60 ±5rpm
Stall current  31A 16A
Stall torque 36Nm
Protection circuit EMC. RFI.
Protection grade IP33
Weight 1.6Kg

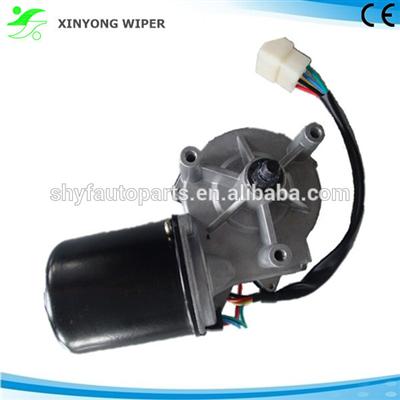

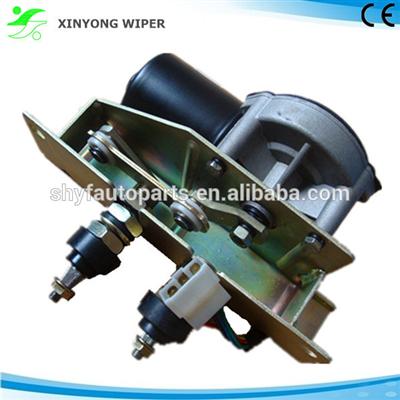

Pictures of ZD2531D-58° wiper motor:






Wiper motor drawing:



ZD2531D drawing-2.jpgZZD2531D drawing-1.jpg



Wiper motor connector:



Connector type Red wire Blue wire Green wire Yellow wire
4 holes 4 wires Positive High speed Low speed Reset



Raw material of wiper motor: copper, iron, aluminum alloy, plastic, etc.

Working temperature: -40°c - 65 °c

We follow QC/T413-2002 Basic Technical Requirements of Automotive Electrical EquipmentsQC/T29090-1992 Automotive Wiper Motor Technology Requirements.

  Packaging & Shipping

Package: each one in a box, 5 boxes in a carton.

Carton size: 57x47x15cm

Weight of each carton: 8Kg

Volume of each carton: 0.04CBM

Delivery time: within 30 days after order

We can arrange you air or sea shipment, also welcome information of your forwarder.

  Our Services

Free samples are for serious customer.

Your OEM sample and ODM design are welcomed.

Please let us know in time if there is any problems with our products, we will solve the problem at the first time.

  Company Information

Wiper Motor workshop:



Rotor winding process.jpggear box and bracket.jpglinkage line.jpgwiper motor workshop.jpg



Certificates:

certificates of products.jpg

  FAQ

Production: Usually within 30 days after order.

payment term: 30% in advance, 70% after copy of B/L, or negotation.

Package: Usually in carton package, also we can follow your requirements.

Please write me email if any other questions.
