YUTE SAE 30R9 fuel systems automotive use 5/16 inch oil resistant rubber hose

Inventory

30000

Contact Now

Leave message Favorites

Basic Info

Samples

true

Product Description

Overview

Quick Details

Place of Origin:

Zhejiang, China

Brand Name:

YUTE

Warranty:

36 Months

Size:

Standard Size

Certification:

ISO/TS16949

OE NO.:

OE .no

Car Model:

Uinversal Car

products name:

oil resistant rubber hose

material:

FKM/ECO/CR/ECO

color:

black

working pressure:

20 BAR(300 psi)

bursting pressure:

80 BAR(1200 psi)

temperature range:

-40~+135 centigrade

delivery time:

15 days

package:

according to customers' requirement

accept OEM service:

yes

length:

100m /roll

Supply Ability

Supply Ability:30000 Meter/Meters per Day for oil resistant rubber hose

Packaging & Delivery

Packaging Detailsoil resistant rubber hose of package:standard export packagePortningbo /shanghai/qingdaoLead Time :Shipped in 15 days after payment

YUTE SAE 30R9 fuel systems automotive use 5/16 inch oil resistant rubber hose

Product Description

Applications of oil resistant rubber hose:

Designed specially for auto and truck fuel injection systems, use with gasoline, diesel, bio-diesel ,E-85, methanol, ethanol, ethanol extended gasoline, and gasohol fuels.

Temperature rating : -40° F to 275° F (-40° C to 135° C)

Technical Parameter of oil resistant rubber hose:

NO	I.D		Refer to O.D		Working pressure		Burst pressure		approximate Weight
NO	(inch)	(mm)	(inch)	(mm)	MPa	Psi	MPa	Psi	kg/m	lbs/ft
1	1/8	3.2±0.2	0.35	9±0.3	2.06	300	8.27	1200	0.078	0.12
2	5/32	4±0.2	0.4	10±0.3	2.06	300	8.27	1200	0.092	0.14
3	3/16	4.8±0.2	0.43	11±0.3	2.06	300	8.27	1200	0.108	0.16
4	1/4	6.3±0.3	0.5	12.7±0.3	2.06	300	8.27	1200	0.134	0.2
5	5/16	8.0±0.3	0.56	14±0.3	2.06	300	8.27	1200	0.147	0.22
6	3/8	9.5±0.3	0.63	16±0.4	2.06	300	8.27	1200	0.182	0.27
7	15/32	12±0.3	0.75	19±0.5	2.06	300	8.27	1200	0.238	0.35
8	1/2	12.7±0.4	0.78	20±0.5	2.06	300	8.27	1200	0.262	0.39
9	5/8	16±0.4	0.94	24±0.5	1.03	150	4.12	600	0.351	0.52
10	3/4	19±0.4	1.13	28.8±0.5	1.03	150	4.12	600	0.515	0.77
11	1	25.4±0.5	1.38	35±0.6	1.03	150	4.12	600	0.637	0.95

oil resistant rubber hose

Company Information

YUTE (Yuyao Hengtegu Auto Parts Factory), professional manufacturer of Auto rubber hoses for 10 years. Have senior engineers and product development team. With ISO/TS 16949 ,CE,ROHS,3C and D.O.T certifications.

Main products:

1). Fuel hose (SAE J30 )

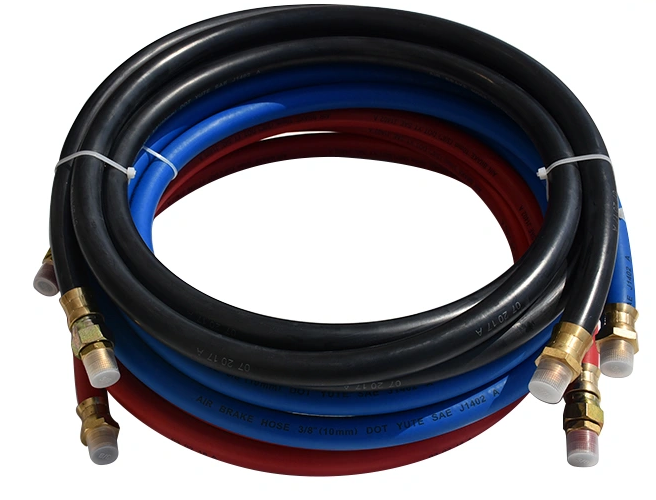

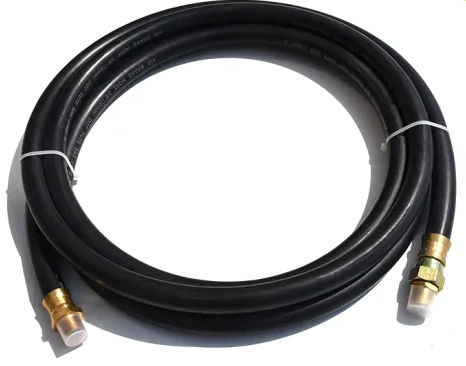

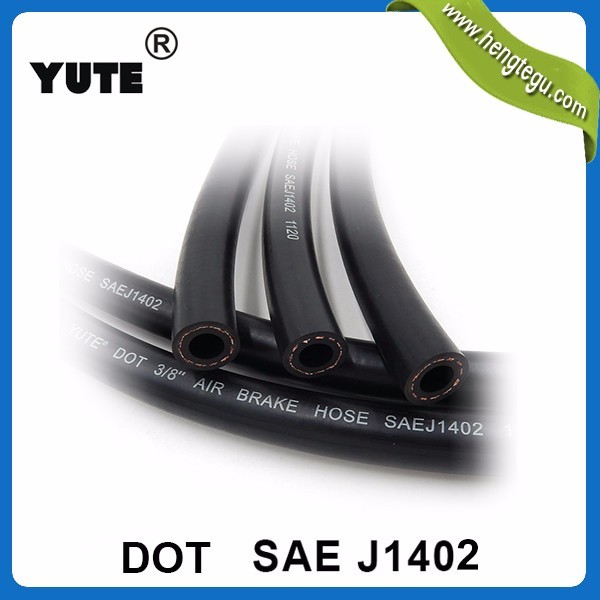

2).Air brake hose (SAE J1402)

3).Hydraulic brake hose (SAE J1401)

4).Transmission oil cooler hose (SAE J1532)

5).Power steering hose (SAE J188)
6).Rubber air hose (SAE J20)

7). Refrigerant charging hose (SAE J2196)
