Technical Parameter

1、Tank Capacity：26Gallon；

2、Material of Tank：HDPE（High-density polyethylene）

3、Funnel Capacity and Material：15Liter，HDPE，Dia.：17”

4、Adjustable pipe Material：Galvanized metal tube

5、Max Working Pressure: 0.3bar

5、Min Working Height：54”

Max Working Height：69”

6、Medium：Waste Vehicle Oil

7、Temperature Range：-30°C-80°C

8、Shipping Weight：25KGS

9、Outer Packing Size：62*57*87CM

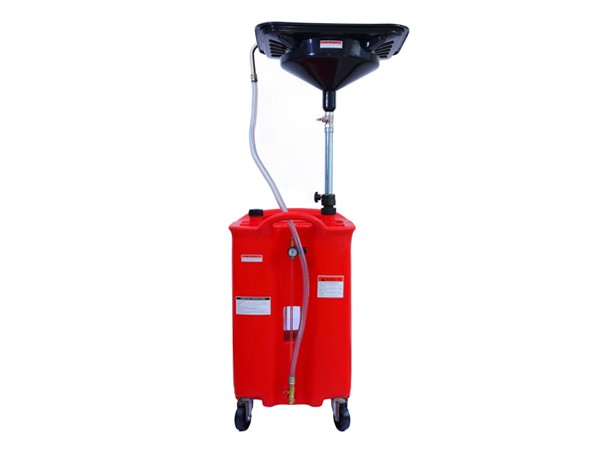

Wheel-mounted oil drainer, with 2pcs 4” casters and 4pcs 10” wheels；Adjustable height;

The drainer works with air supply to discharge oil out, safe and swift, reliable quality.
